Farizon SV L2 H2 with racking:
Smarter storage for daily operations

Icon_Range_cream-1

Range: 234 miles

Icon_KG_cream-1

Payload: 1,160 kg

Icon_Storage_Cream-2

Capacity: 9.39 m3

Icon_Charge_Cream-1

Fast charging: 20%-80% in 36 minutes

Icon_Charge_Cream-1

Overnight charge: 9 hours

Farizon SV L2 H2 Racking ConfiguratorEnquire

About CPD

CPD designs and builds LCV conversions at scale, including dropsides, tippers, Lutons, traffic management and panel vans, delivered ready for fleet operation. We understand the practical demands of electric vehicles and build accordingly, balancing payload, range and onboard systems while embedding sustainability into the LCV conversion supply chain.

Safer. Simpler. Smarter. Scalable.

Where smart storage meets zero emissions

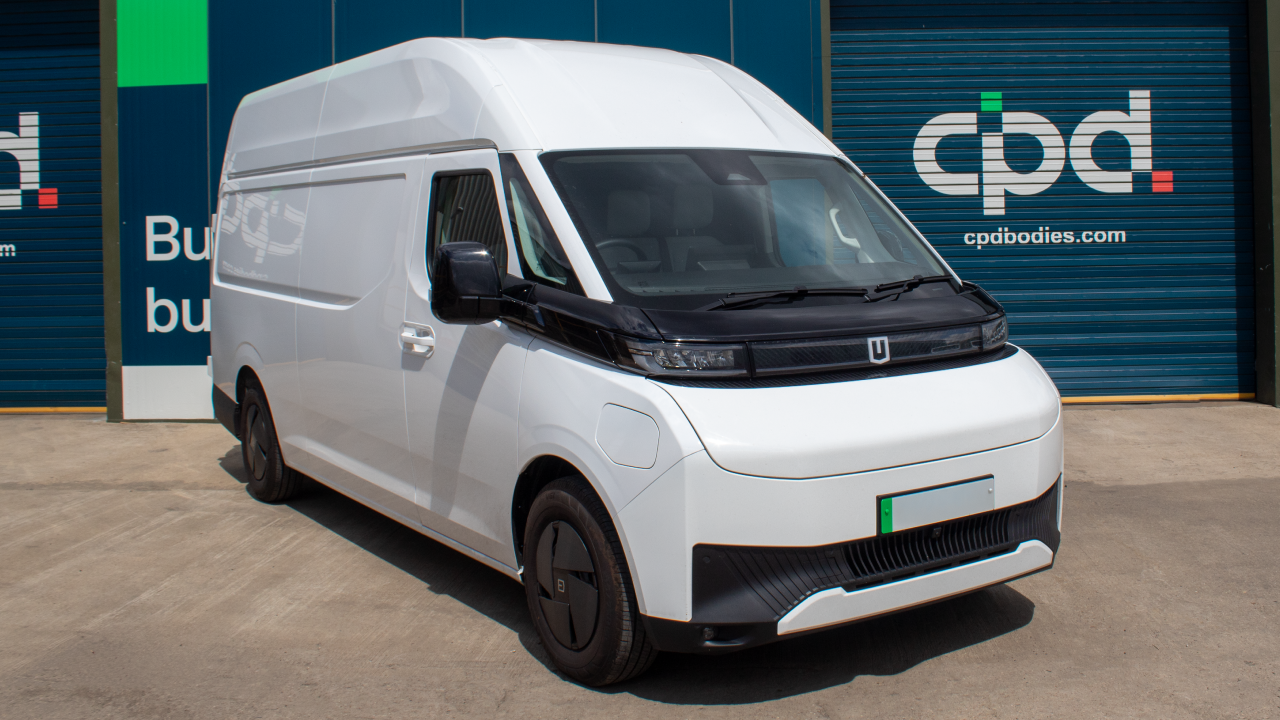

The Farizon SV L2 H2 is a clean-sheet electric van, designed from the ground up to operate as a working vehicle. With up to 1,160 kg payload (2 occupants) and a well-proportioned load space, it delivers the practicality expected from a 3.5T van without compromise. Furthermore, with a towing capacity of 2000 kg,

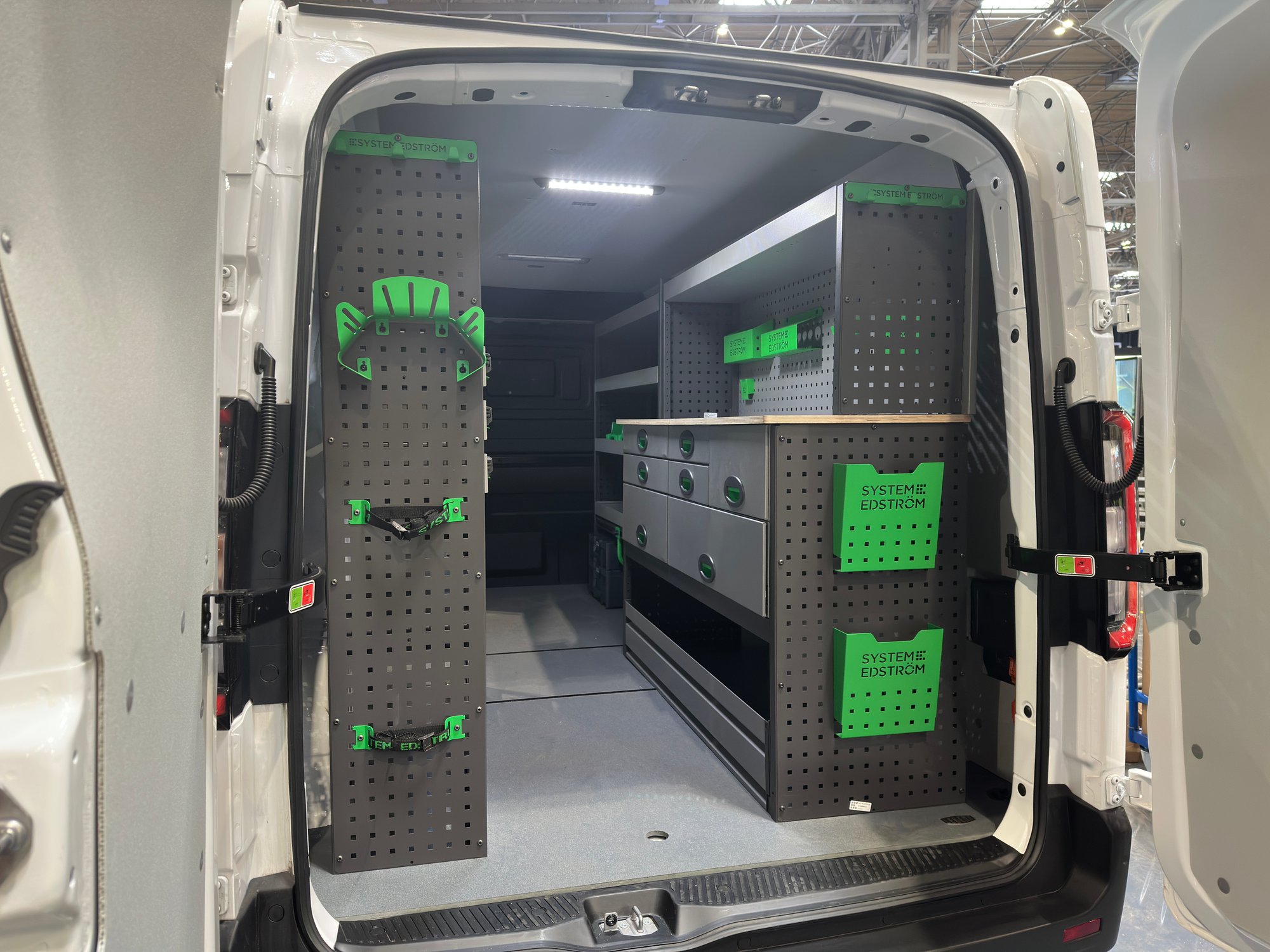

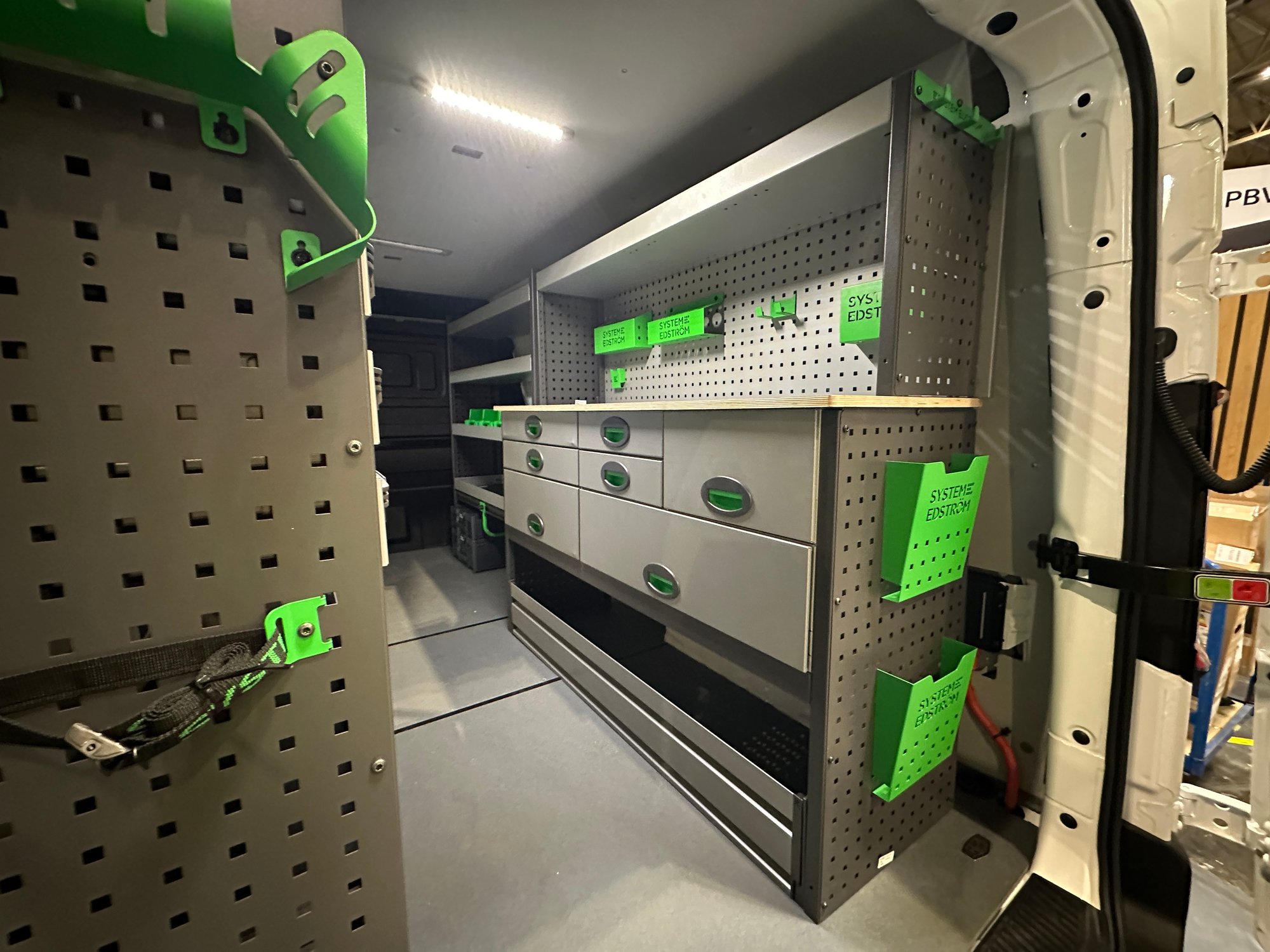

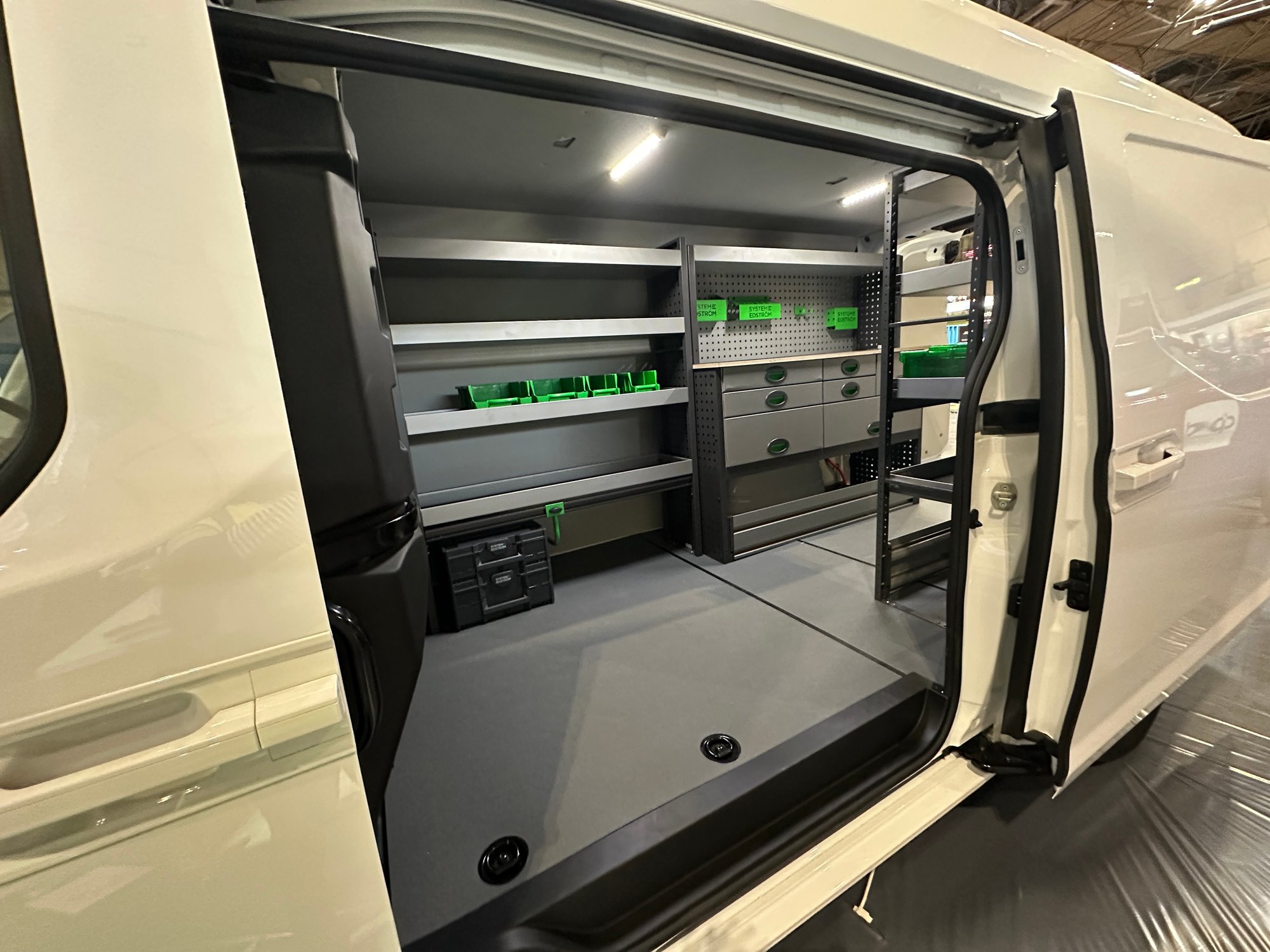

The vehicle on our stand is fitted with System Edström racking. This lightweight, crash-tested installation is designed to maximise usable space while keeping tools organised, accessible and secure. The floor liner is provided by Legend.

While the show vehicle demonstrates a fully installed configuration specifically created for the CV Show, CPD offers a range of modular racking options which can be tailored to suit your business needs. Check out the options available on the configurator form below.

Configured to work. Ready to go.

Racking by System Edström

These modular storage systems are designed to deliver safe, efficient mobile workspaces. From simple racking to fully bespoke, our partnership with System Edström provides all trades with a strong, reliable racking solution.

We'd like to thank our racking partner, System Edström for providing us with the bespoke racking for our Farizon L2 H2 panel van.

System Edstrom logo







About the Farizon SV L2 H2 panel van

Compliance

■ ULEZ
■ Low Emission Zone

Supporting:
■ NRMM
■ CAPE
■ PAS2080 supporting

System Edstrom Racking
■ NS286 standard
■ ISO 9001 accredited
■ ISO 14001 accredited
■ ISO 45001 accredited




Safety

■ Anti-lock Braking System (ABS)
■ Electronic brakeforce distribution/cornering brake control
■ Driver and passenger airbag
■ Height adjustable safety belt
■ Three-point belt
■ Pretensioning force
■ Driver and passenger seat belt reminder/alarm
■ Tyre pressure monitoring system /(TPMS)
■ Automatic door locking
■ Overspeed alarm
■ Acoustic vehicle alerting system /(AVAS)
■ Collision power-off system
■ Collision door opening
■ Door open reminder
■ Speed limit reminder
■ intelligent speed assist
■ forward collision warning
■ rear cross-traffic alert
■ rear collision warning.
■ Crash tested van racking interior
■ System Edström meets all the traffic safety requirements

*Vehicle information from Farizon UK

Dimensions

Battery output
Length
Width
Height
Front track
Rear track
Wheelbase
Front overhang
Rear overhang
Ground Clearance
Cargo Height
Turning Circle

83 kWh
5,490 mm
1,980 mm
2,180 mm
1,719 mm
1,722 mm
3,600 mm
830 mm
1,060 mm
150 mm
550 mm
14.0 m



Capability

■ Euro NCAP platinum rating in crash avoidance

■ 1160kg payload [+/-5%] (excluding racking)
■ 9.393 capacity
■ 234 mile range [WLTP]
■ Towing to 2000 kg with braked trailer
■ 36m 20-80% rapid charge time
■ 9hrs 10-100% 11KWh overnight charge time





Racking Conversion Options

Panel_Van_conversion_base-1

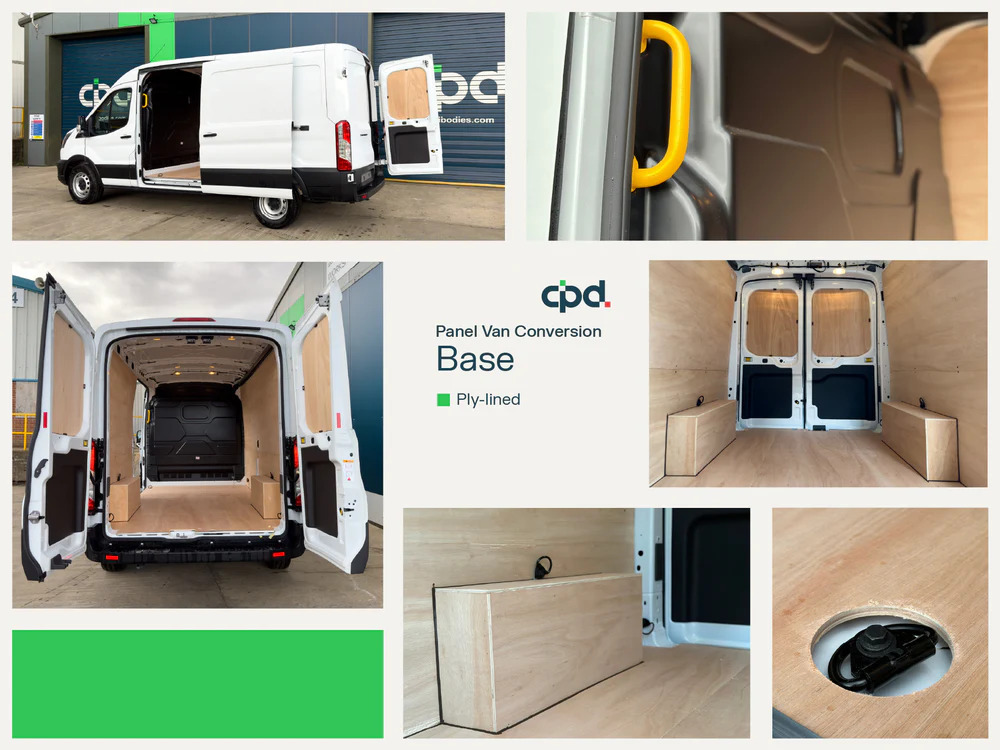

Base

A practical, cost-effective solution with full interior lining to protect your van and create a durable working space.

Panel_Van_conversion_Essential_1

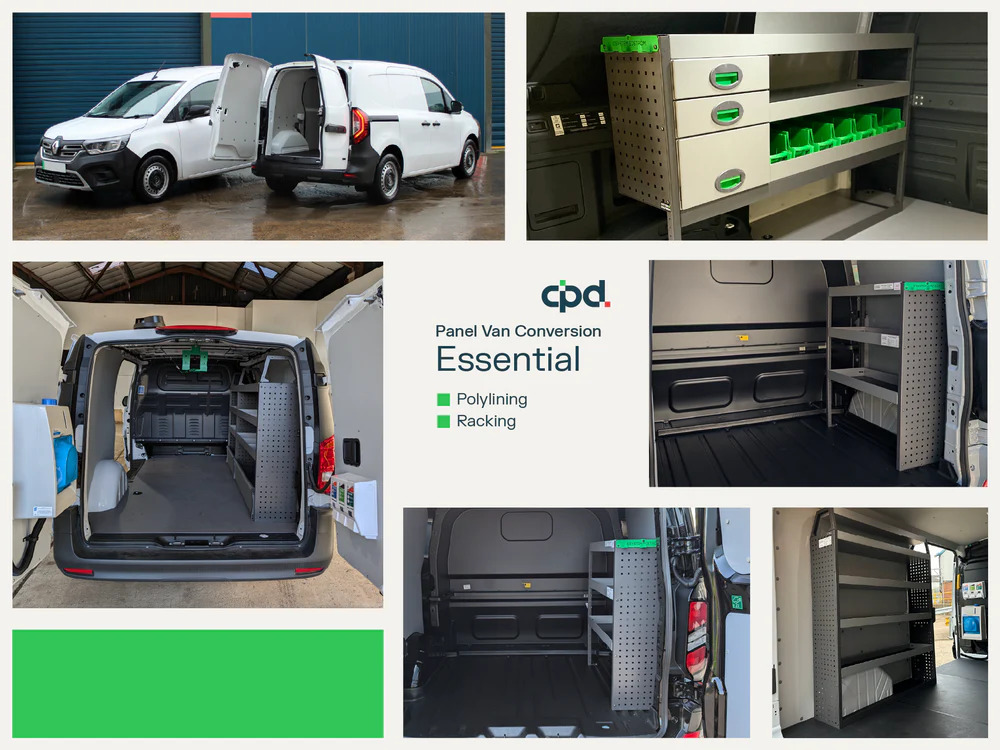

Essential

Offering practical racking and interior lining, this conversion is designed to keep tools and equipment organised while maintaining a cost-effective, durable solution for your business.

Panel_Van_conversion_select-1

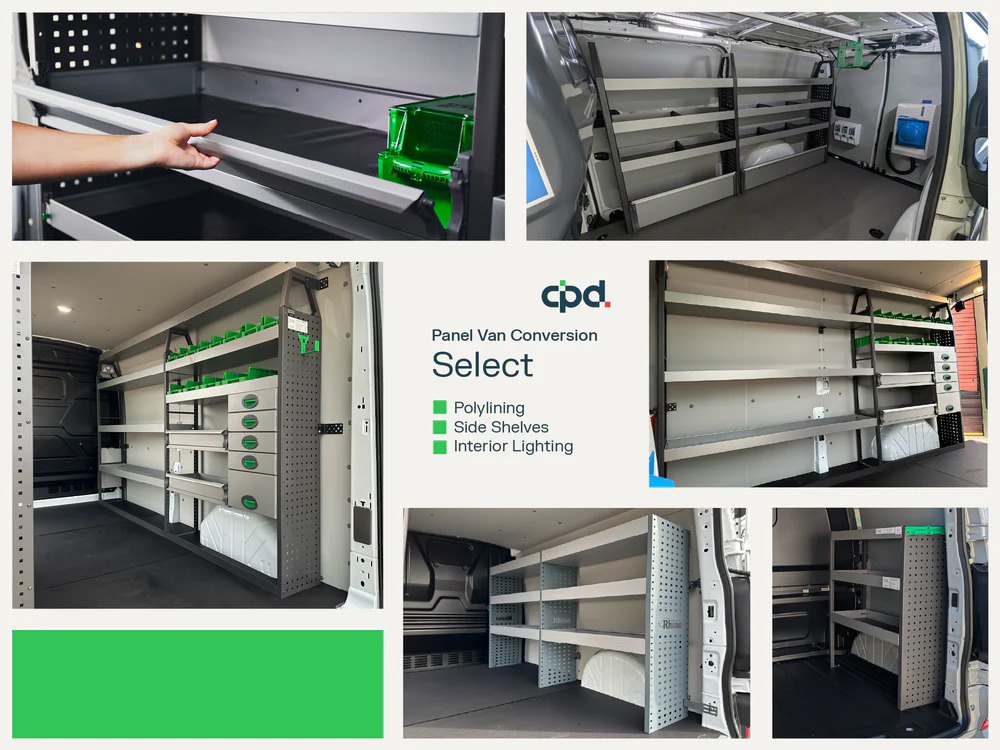

Select

Featuring enhanced racking, additional storage, and more customisation options, the Select conversion provides increased organisation and flexibility, ideal for businesses looking to optimise their van space.

Panel_Van_conversion_Plus_af3389c2-7ee7-40c2-a86b-2bb5da99dbd5

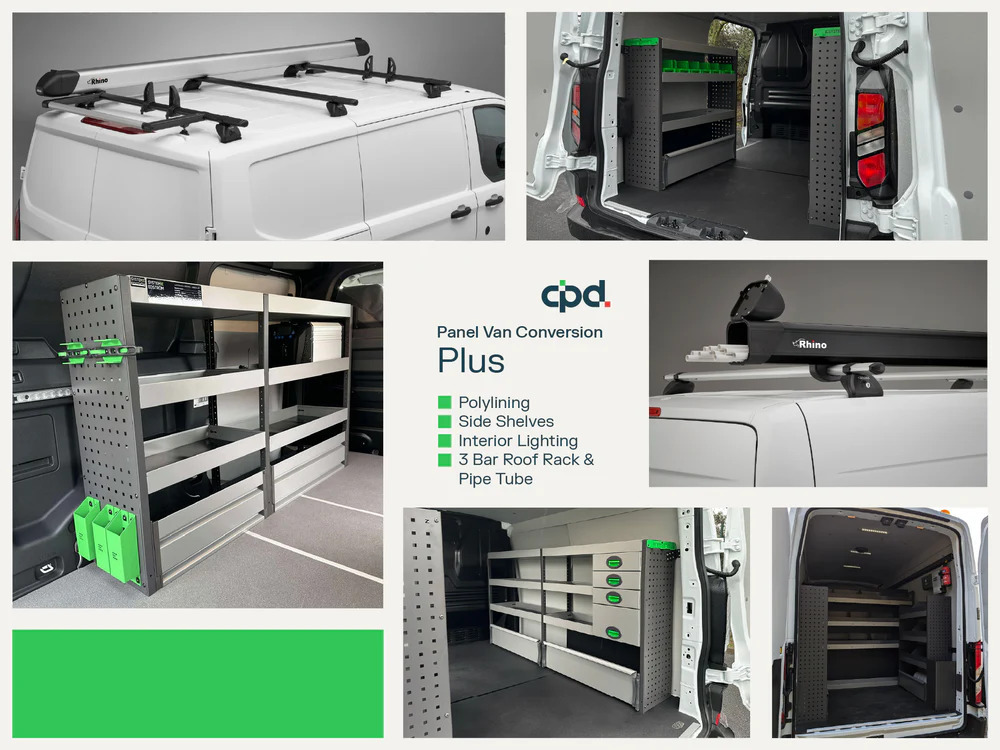

Plus

The Plus conversion includes advanced racking, increased storage capacity, and extra features to optimise workflow and productivity, perfect for businesses with higher demands on their vans.

Panel_Van_conversion_Pro_aea8433b-ba76-46a5-817e-b824ebf46d50

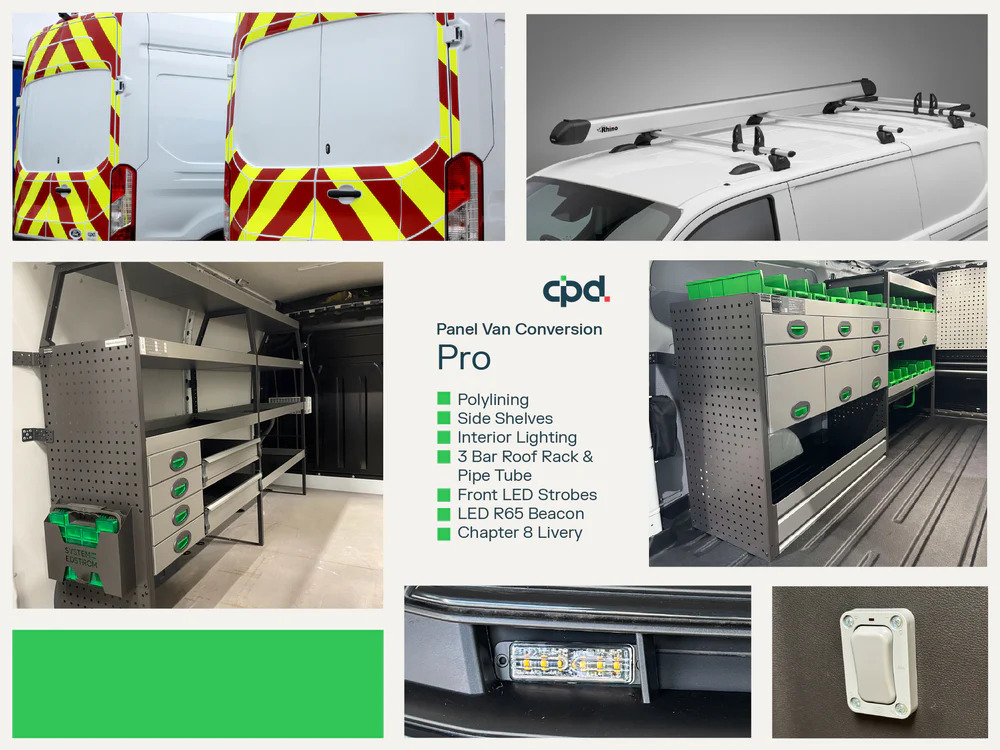

Pro

Our premium conversion, offering fully tailored racking, top-quality finishes, and advanced organisational features. The Pro conversion is built for businesses requiring maximum efficiency and a professional finish for intensive use.

Panel_Van_conversion_base_Bespoke_1a82d4ae-9bb8-44c2-9e63-c5afdf8066f0

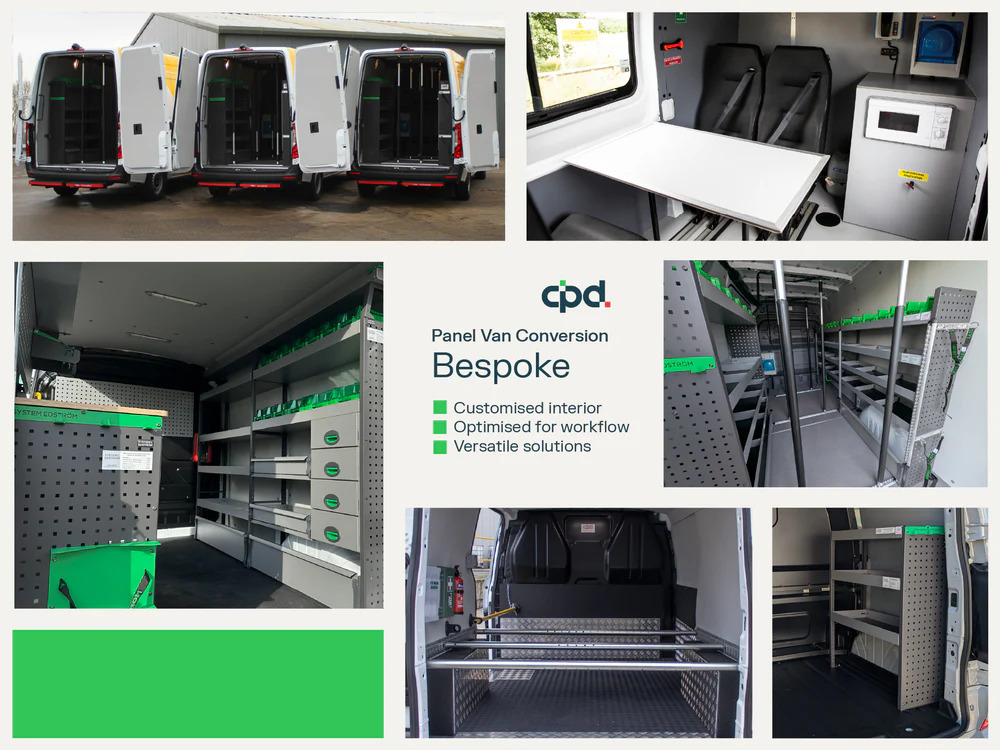

Bespoke

Our bespoke panel van conversions deliver fully customised interiors, optimised for workflow and efficiency. Every solution is designed for versatility, ensuring your vehicle supports how your team works day in, day out.

More about our Farizon and System Edström racking

Built for trades looking to improve organisation, efficiency and electrification, the Farizon L2 H2 with integrated System Edström racking is a practical step forward for mobile operations.

Racking your way. Built to perform.

Enquire Now
IMG_2433
IMG_2431
IMG_2434
thumb-farizon (1)
1261531 (1)

Livery by Sinage Solutions

We’ve worked with Signage Solutions GBR Ltd on the vehicle livery for this year’s CV Show. Print was handled by their team, with all application completed on site at CPD. Our warmest thanks for their straightforward to work ethos and for being so responsive under tight timelines, helping ensure the vehicles were finished to the fantastic standard you can see.

Explore our range of EV from the CV Show

lutonn

Mercedes eSprinter Luton

welfareee

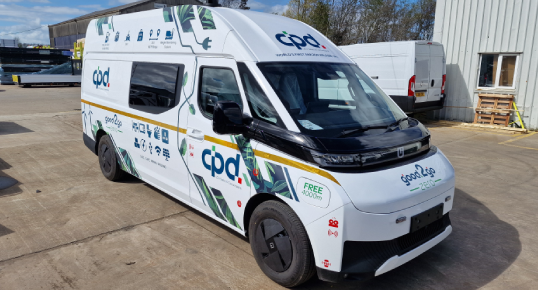

Farizon L3/H3 Welfare
